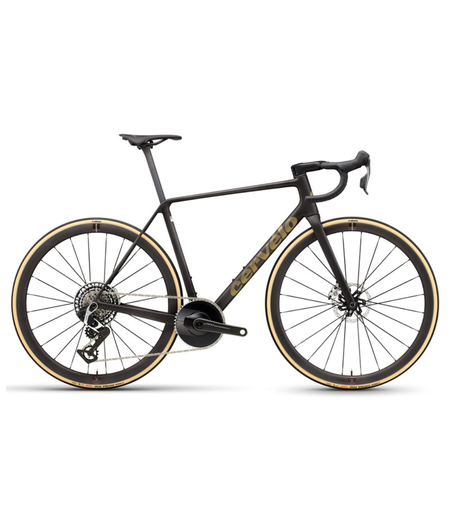

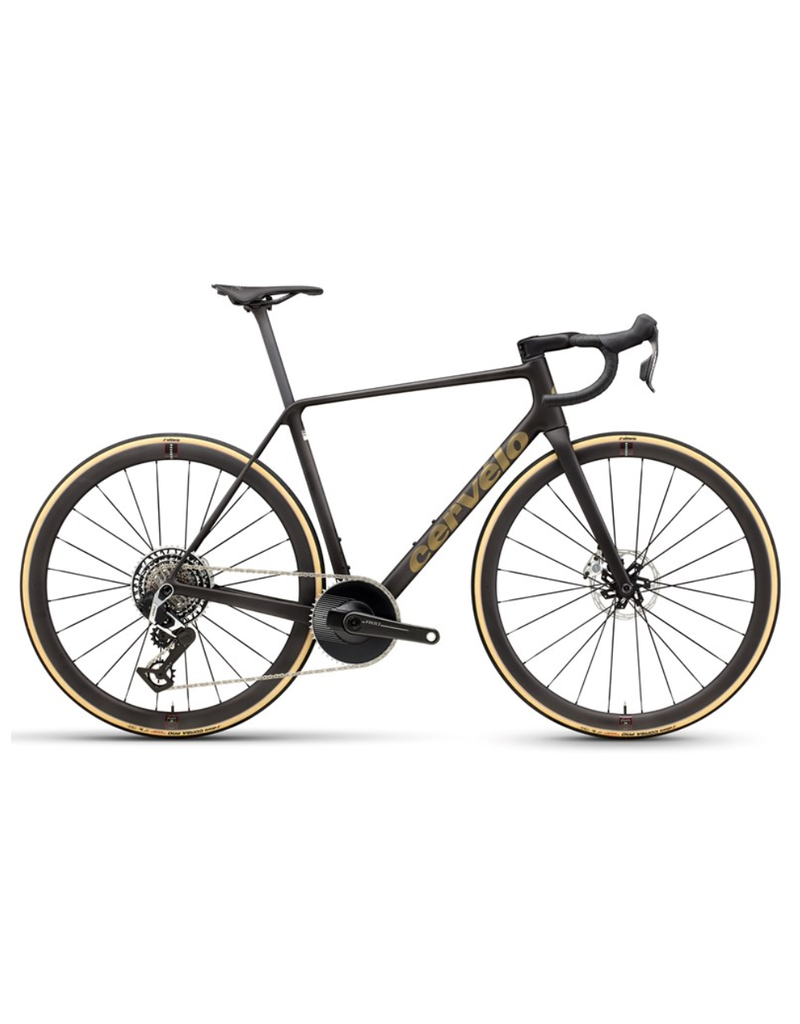

R5 Red XPLR AXS 1 Five Black/Bronze

Detail Information

It’s easy enough to make a light bike, but to make a light bike that’s stiff enough to accelerate quickly and transfer power from the sport’s biggest motors? That’s another challenge entirely.

• Only 5.97kg in RED and Dura-Ace builds, a full 900 grams under the UCI’s minimum weight limit.
• One-piece handlebar/stem
• Fit geometry to match the S5
• Ultralight Reserve 34|37 SL wheels

Description
Colour Five Black/Bronze
Colour Finish Satin
Fork Cervélo All-Carbon, Tapered R5 Fork
Headset FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
Seatpost Cervélo SP33 Carbon
Seatpost Sizing Size 48 - 0mm, Size 51 - 0mm, Size 54 - 0mm, Size 56 - 0mm, Size 58 - 15mm, Size 61 - 15mm
Left Shifter/Brake SRAM Red AXS E1
Right Shifter/Brake SRAM Red AXS E1
Rear Derailleur SRAM Red XPLR AXS E1
Brake Rotors SRAM Paceline X Centerlock, SRAM Paceline X Centerlock
Front Thru Axles Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru Axles Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Bottom Bracket SRAM DUB Ceramic, BBright
Crankset SRAM Red 1 AXS E1, 48T Aero, DUB, with power meter
Crank Sizing Size 48 - 165mm, Size 51 - 165mm, Size 54 - 170mm, Size 56 - 170mm, Size 58 - 172.5mm, Size 61 - 172.5mm
Handlebar Sizing Size 48 - 36cm, Size 51 - 38cm, Size 54 - 40cm, Size 56 - 40cm, Size 58 - 40cm, Size 61 - 40cm
Stem Sizing Size 48 - 80mm, Size 51 - 90mm, Size 54 - 100mm, Size 56 - 100mm, Size 58 - 110mm, Size 61 - 120mm
1-piece Handlebar/Stem Cervélo HB18 Carbon
Saddle Prologo Nago R4 PAS Nack Lightweight
Cassette SRAM Red XPLR E1, 10-46T, 13-Speed
Chain SRAM Red E1
Front Wheel Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear Wheel Reserve 37TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tire Vittoria Corsa Pro Speed TLR G2.0 700x26c
Max Tire Width 34mm
